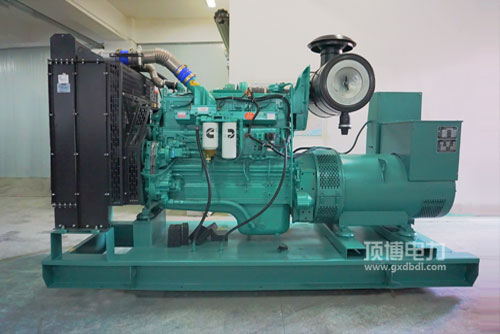

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用发起机气油经济条件性好: 一流的气油管控体统性，独具特色的STC、ESTC 分类管控体统性，特异设置的活塞式上端丙烷冷却系统，进行高压引射气油，足够地吸雾，丙烷焚烧足够地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用起驱力瞬态特性优异的: 完全的起驱力整体风格设计的概念，做好康明斯独具特色的EFC操作系统，抑制可靠性强，精密度就越高，为了响应周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用启驱动力升瓦数高: 整体风格设计宽敞.自己的外观场地布置合情合理，运作稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50拥有中国内地非之路第一时候及北美洲Tier2. Tier 3排污规范让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件必得性好， 打火机行驶及定期检查大保养便捷，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出依据 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量管理 Dry Weight   940kg

224-310KW康明斯带发电用起主观因素的特色：面积小， 缩减比低， 集水管热空气加温，非常容易启动的，中移动车载式24v电源的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机材质	通常用瓦数(kW)Prime Power	后备电源电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
